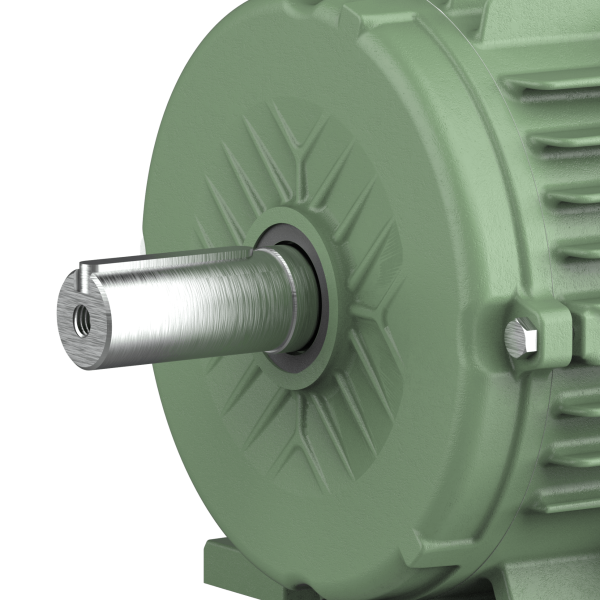

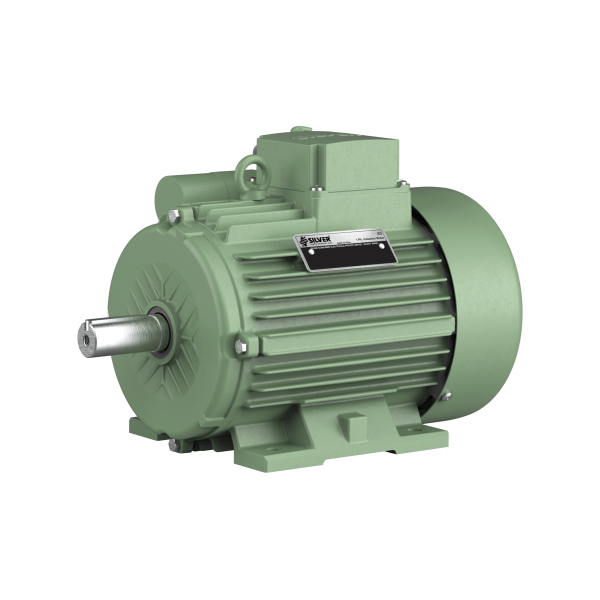

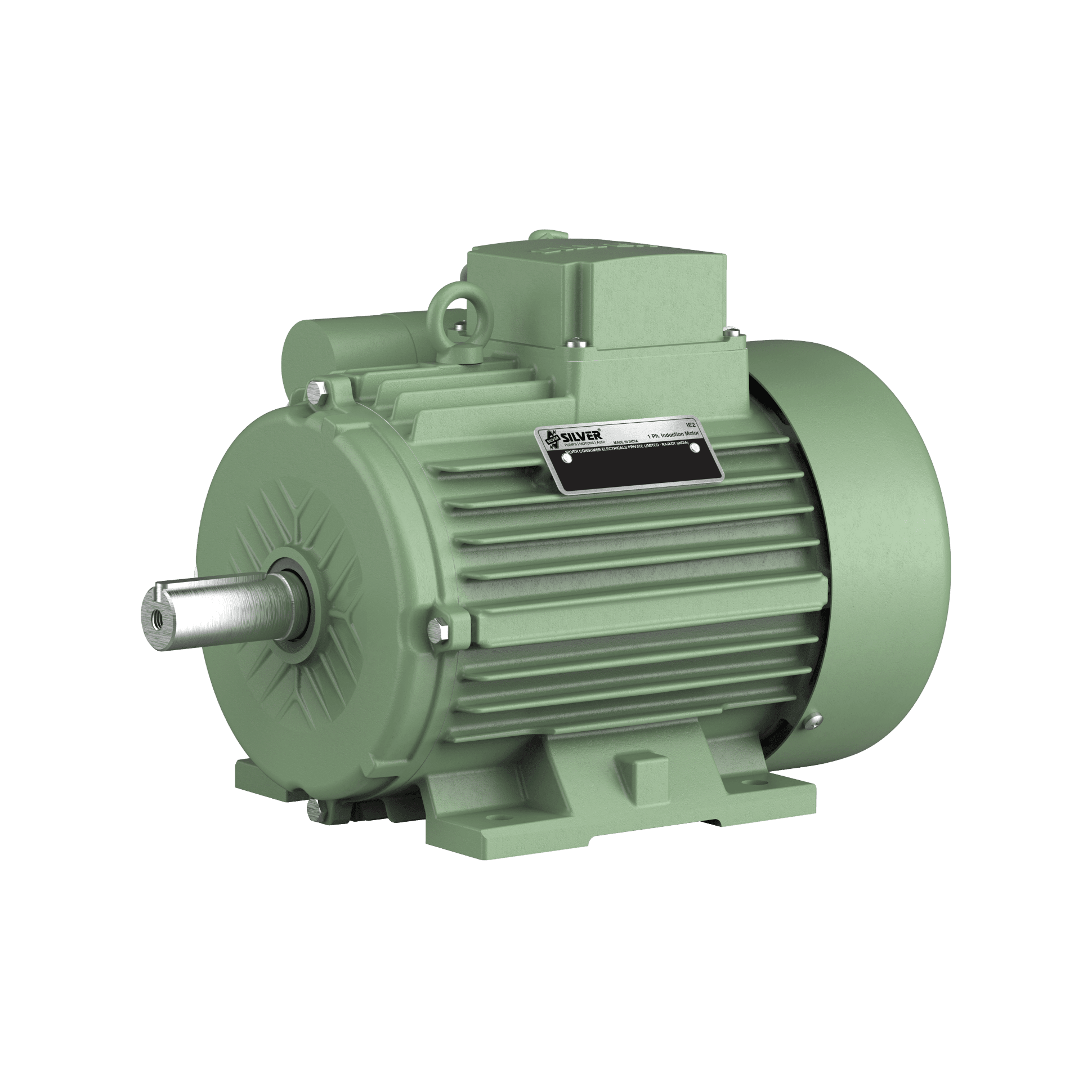

Electra Series
Features
- High Starting Torque
- Suitable for wide Voltage & Frequency
- Design With Top Terminal Box as standard.
- Motors are tough, reliable and long lasting.
- Optimum fan design for better Cooling & minimum energy consumption.
- Grease Lubricated anti-friction ball bearings shall be fitted at both ends to withstand radial and axial loads.
- Provision for Dual mounting wherever applicable
- Sophisticated CNC Machines, Most Advanced Manufacturing Technology & Test Plant – Improved reliability
Specifications
Technical Specification | Standard Product | Options Available |
---|---|---|
Performance standard | IS 12615:2018, IS/IEC 60034-1 & IS/IEC 60034-5 | – |
Output | 0.18 kW to 18.5 kW (0.25 HP to 25.0 HP) | – |
Frame Size | 63 to 225 S | – |
Poles | 2, 4, 6, 8 | – |
Degree of Protection | IP 55 | IP 56 |
Insulation Class | F | H |
Temperature rise | Limited to Class B | F |
Rated Voltage | 415 Volt (±10%) | 230 Volt |
Rated frequency | 50 Hz (±5%) | 60 Hz |
Connection | “Up to 3.00 HP (2.2 kW) Star Connection with 6 Wire Above 3.00 HP (2.2 kW) Delta Connection with 6 Wire” |
– |
Enclosure | Totally Enclosed Fan Cooled (TEFC) | – |
Mounting | Foot, Flange (B-Type & C-Type) | It’s Combination |
Duty | S1 | – |
Maximum Ambient temp. | 40 °C | 50 °C |
Altitude | Up to 1000 MASL (Meter above sea Level) | – |
Cooling method | IC 411 | IC 410 |
Paint Colour | Green | On request |
Fan Cover | Sheet Metal | – |
Terminal Box Position | TOP | Left Hand Side (LHS), Right Hand Side (RHS) |
Shaft Extension | Single | Duel |
Brake Provision | – | On request |
Note : On request of optinal features, minimum order quantity may be applicable & Lead time may vary from standard Product. |
MOC
Stamping | CRNO Steel |
Winding | Super enameled Copper |
Front & End Cover | Cast Iron |
Motor Frame | Cast Iron |
Shaft Bar | En-8 |
Terminal Box Cover | Aluminium Die Cast |
Fan | Poly Propylene – Co Polimer |
Fan Cover | Mild Steel |
Technical Specifications
Electra Series, 1Phase, 2 Pole / 3000 RPM | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | RATING | FRAME SIZE | RATED SPEED (RPM) | RATED CURRENT (AMP.) | RATED TORQUE (KG.M.) | EFFICIENCY | POWER FACTOR | STARTING CURRENT % OF RATED CURRENT | STARTING TORQUE % OF RATED TORQUE | RUNNIG CAPACITOR | PULL OUT TORQUE % OF RATED TORQUE | |||||
KW | HP | 100% | 75% | 50% | 100% | 75% | 50% | (MFD)% | ||||||||
IM0CI0.252P1 | 0.18 | 0.25 | 71 | 2800 | 2.10 | 0.06 | 55.00 | 52.00 | 49.00 | 0.64 | 0.59 | 0.50 | 400 | 35 | 12.50 | 150 |
IM0CI0.502P1 | 0.37 | 0.50 | 80 | 2800 | 3.00 | 0.13 | 58.00 | 54.00 | 50.00 | 0.90 | 0.83 | 0.75 | 375 | 35 | 12.50 | 150 |
IM0CI1.002P1 | 0.75 | 1.00 | 80 | 2800 | 6.00 | 0.26 | 63.00 | 60.00 | 55.00 | 0.87 | 0.80 | 0.73 | 375 | 35 | 25.00 | 150 |
IM2CI1.502P1 | 1.10 | 1.50 | 90 | 2800 | 8.00 | 0.38 | 69.00 | 66.00 | 61.00 | 0.88 | 0.81 | 0.72 | 400 | 35 | 30.00 | 150 |
IM2CI2.002P1 | 1.50 | 2.00 | 90 | 2800 | 12.00 | 0.52 | 73.00 | 70.00 | 63.00 | 0.75 | 0.71 | 0.64 | 400 | 35 | 50.00 | 150 |
Electra Series, 1Phase, 2 Pole / 3000 RPM | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | RATING | FRAME SIZE | RATED SPEED (RPM) | RATED CURRENT (AMP.) | RATED TORQUE (KG.M.) | EFFICIENCY | POWER FACTOR | STARTING CURRENT % OF RATED CURRENT | STARTING TORQUE % OF RATED TORQUE | RUNNIG CAPACITOR | STARTING CAPACITOR | PULL OUT TORQUE % OF RATED TORQUE | |||||
KW | HP | 100% | 75% | 50% | 100% | 75% | 50% | (MFD)% | |||||||||
IM0CI0.254P1 | 0.18 | 0.25 | 80 | 1450 | 1.55 | 0.12 | 63.00 | 62.00 | 60.00 | 0.80 | 0.78 | 0.70 | 575 | 275 | 6.00 | 60 / 80 | 275 |
IM0CI0.504P1 | 0.37 | 0.50 | 80 | 1440 | 3.40 | 0.25 | 65.00 | 62.00 | 58.00 | 0.79 | 0.73 | 0.63 | 500 | 275 | 12.50 | 60 / 80 | 250 |
IM0CI0.754P1 | 0.55 | 0.75 | 80 | 1445 | 4.20 | 0.37 | 68.00 | 62.00 | 52.00 | 0.91 | 0.88 | 0.80 | 500 | 230 | 15.00 | 80 / 100 | 225 |
IM0CI1.004P1 | 0.75 | 1.00 | 90S | 1450 | 6.70 | 0.50 | 72.00 | 68.00 | 55.00 | 0.75 | 0.65 | 0.55 | 475 | 250 | 15.00 | 100 / 120 | 210 |
IM0CI1.504P1 | 1.10 | 1.50 | 90L | 1455 | 7.80 | 0.74 | 75.00 | 71.00 | 64.00 | 0.85 | 0.80 | 0.68 | 525 | 240 | 25.00 | 120 / 150 | 210 |
IM0CI2.004P1 | 1.50 | 2.00 | 100L | 1460 | 9.10 | 1.00 | 79.00 | 78.00 | 75.00 | 0.91 | 0.87 | 0.81 | 500 | 250 | 30.00 | 150 / 200 | 275 |
IM0CI3.004P1 | 2.20 | 3.00 | 112M | 1460 | 12.50 | 1.47 | 81.00 | 79.00 | 75.00 | 0.95 | 0.93 | 0.90 | 550 | 275 | 36.00 | 200 / 250 | 275 |
